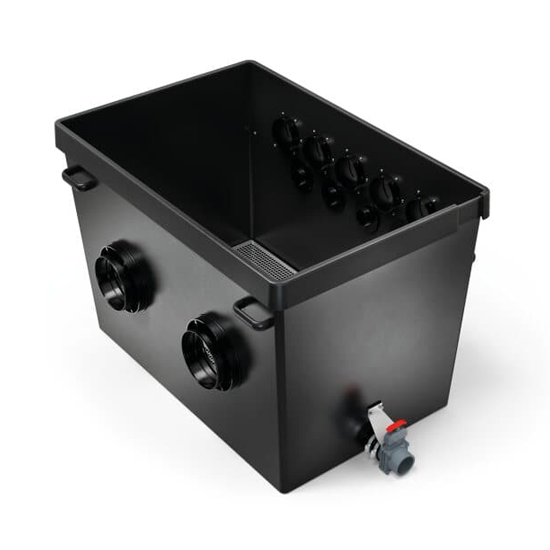

ProfiClear Premium XL Discharge Module Gravity-Fed

The new ProfiClear XL Gravity Discharge Module has been designed to house pumps and UV clarifiers at the last stage of the gravity fed filtration scenario whilst supplying several outlets to return the processed water back to the pond.

The internals of the module are specifically designed for mounting the AquaMax Eco Titanium pumps and the new Bitron Premium UV Clarifiers.

Product Features:

  • Mature, professional technology with more than three years of development time.
  • Innovative and reliable product.
  • Larger pump and UVC chamber for easy integration of: AquaMax Eco Titanium filter pumps and new Bitron Premium UVC clarifiers.
  • Greater flexibility in connection due to 5 x DN110 and 4 x Tradux (2″ inlets)
  • Integrated bottom drain with high quality, finely engineered slide valve.

Product Specification:

  • Dimensions: 1330 x 875 x 820 (mm)
  • Guarantee: 2 + 1 Years
  • Min. flow rate: 25,000 l/h
  • Max. flow rate: 66,000 l/h
  • Installation height above water: 8.5 cm
  • Number of inlets: 2 (180mm)
  • Number of outlets: 9 (5 x DN110, 4 x 2″ Tradux)

The ProfiClear Premium XL Discharge (Gravity-Fed Module) can be used after the ProfiClear Premium XL Drum Filter (Gravity-Fed) & the ProfiClear Premium XL Moving Bed Module
