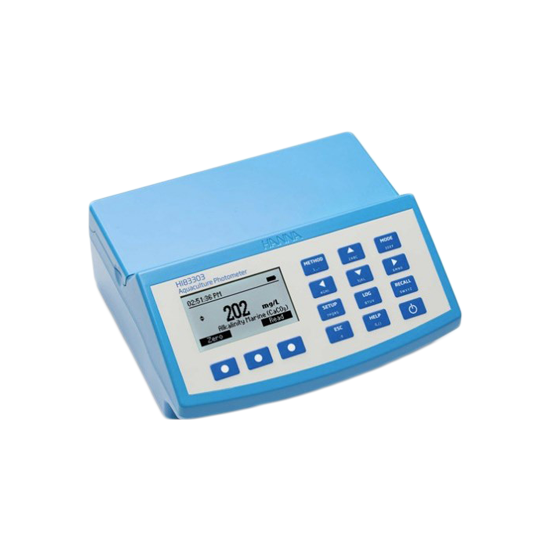

HI-83303 Aquaculture Photometer with pH meter
Advanced optical system – Unparalleled performance from a benchtop photometer.
To save valuable benchtop space, the HI-83303 doubles as a professional pH meter with its digital pH/temperature electrode input. Aquaculture parameters include Alkalinity, Calcium, Nitrite, and Phosphate which are critical to maintaining a healthy system. It also contains parameters specific to either a marine or freshwater environment.
The photometer features an innovative optical system that uses LEDs, narrow band interference filters, focusing lens and both a silicon photodetector for absorbance measurement and a reference detector to maintain a consistent light source. It ensures accurate and repeatable photometric readings every time.
Made with the aquaculture industry in mind, the HI-83303 is a comprehensive solution to maintaining optimal chemical and environmental conditions, preventing disease and increasing production.
The HI-83303 measures vital parameters such as Alkalinity, Calcium, Nitrite, and Phosphate. Alkalinity plays a part in a dynamic relationship with pH and CO2 concentrations, high alkalinity water lowers fluctuations in pH. The buffering capacity acts to store extra CO2 essential for photosynthesis in the ponds to produce oxygen. Maintaining calcium at certain levels is vital to proper fish growth and development. Excessive nitrite can be toxic to fish. When nitrite interacts with Haemoglobin, the iron becomes oxidised and the blood cell can no longer carry oxygen. Phosphate is essential to plant growth; too much phosphate in an aquaculture system can contribute to algal blooms decreasing dissolved oxygen vital for a successful ecosystem.
A digital pH electrode input allows the user to measure pH by a traditional glass electrode.
The HI-83303 offers an absorbance measuring mode that allows for CAL Check standards to be used to validate the performance of the system. The absorbance mode allows the user to select one of the five wavelengths of light (420 nm, 466 nm, 525 nm, 575 nm, and 610 nm) to measure and plot their own concentration versus absorbance mode. This is useful for users with their own chemical method and for educators to teach the concept of absorbance by using the Beer-Lambert Law.
Two USB ports are provided for transferring data to a flash drive or computer and to use as a power source for the meter. For added convenience and portability the meter can also operate on an internal 3.7 VDC Lithium-polymer rechargeable battery.
High Efficiency LED Light Source
An LED light source offers superior performance as compared to a tungsten lamp. LEDs have a much higher luminous efficiency, providing more light while using less power. They also produce very little heat, which could otherwise affect the optical components and electronic stability. LEDs are available in a wide array of wavelengths, whereas tungsten lamps are supposed to be white light (all wavelengths of visible light) but actually have a poor blue/violet light output.
High Quality Narrow Band Interference Filters
The narrow band interference filter not only ensure greater wavelength accuracy (+/- 1 nm) but are extremely efficient. The filters used allow up to 95% of the light from the LED to be transmitted as compared to other filters that are only 75% efficient. The higher efficiency allows for a brighter, stronger light source. The end result is higher measurement stability and less wavelength error.
Reference Detector for a Stable Light Source
A beam splitter is used as part of the internal reference system of the HI-83300 photometer. The reference detector compensates for any drift due to power fluctuations or ambient temperature changes. Now you can rely on a stable source of light between your blank (zero) measurement and sample measurement.
Large Cuvette Size
The sample cell of the HI-83303 fits a round, glass cuvette with a 25 mm path length. Along with the advanced optical components, the larger size of the cuvette greatly reduces errors in rotation from the indexing mark of the cuvettes. The relatively long path length of the sample cuvette allows the light to pass through more of the sample solution, ensuring accurate measurements even in low absorbance samples.
Focusing Lens for Greater Light Yield
Adding a focusing lens to the optical path allows for the collection of all of the light that exits the cuvette and focusing the light on the silicon photo detector. This novel approach to photometric measurements cancels the errors from imperfections and scratches present in the glass cuvette eliminating the need to index the cuvette.
- Dissolved Oxygen
- Advanced optical system with brighter, long-lasting LED light source
- Backlit 128 x 64 Pixel Graphic Liquid Crystal Display
- Built-in Reaction Timer for Photometric Measurements
- Absorbance mode – concentration versus absorbance
- Units of Measurement plus chemical form displayed
- Result conversion at the touch of a button
- Cuvette cover
- pH and temperature measurement with a single probe
- Good Laboratory Practice (GLP) – track calibration information including date, time, buffers used, offset and slope for traceability
- CAL Check alerts user to potential problems during the calibration process
- Data Logging – Up to 1000 photometric and pH readings can be stored
- Logged readings can be quickly and easily transferred to a flash drive or to a PC. Data is exported as a .CSV file for use with spreadsheet programs
- Battery Status Indicator
- Error Messages
- Tests up to 18 different parameters.
- Comes with a free carry case worth £65.
|Ammonia LR||0.00 to 3.00 mg/L||Ammonia MR||0.00 to 10.00 mg/L|
|Ammonia HR||0.0 to 100.0 mg/L||Total Chlorine||0.00 to 5.00 mg/L|
|Copper LR||0.000 to 1.500 mg/L||Copper HR||0.00 to 5.00 mg/L|
|Nitrite LR||0 to 600 μg/L||Nitrite HR||0 to 150 mg/L|
|Dissolved Oxygen||0.0 to 10.0 mg/L||pH||6.5 to 8.5 pH|
|Nitrate||0.0 to 30.0 mg/L|
Package 1 Free
Case worth £65
|Hanna Hi-83303 Meter plus Reagents for 100 Ammonia LR, 100 pH, 50 Nitrite LR & 50 Nitrate tests.||
Package 2 Free
Case worth £65
|Hanna Hi-83303 Meter plus Reagents for 100 Ammonia LR, 100 pH, 50 Nitrite LR, 50 Nitrate & 50 Total Chlorine tests||
Free Case worth £65
|Hanna Hi-83303 Meter plus Reagents for 100 Ammonia LR, 100 pH, 50 Nitrite LR, 50 Nitrate & 100 Dissolved Oxygen tests||
Free Case worth £65
|Hanna Hi-83303 Meter plus Reagents for 100 tests for Ammonia LR, 100 Dissolved Oxygen, 100 pH, 100 Nitrite LR & 100 Nitrate tests.||
